Brand: L-faster
Color: Black
Binding: Apparel
Part Number: 200X50 4WD
Details: 4WD Electric Mountain Skateboard Conversion Kit 4 Wheels Drive Off-Road Skateboard With LCD Display Remote
This item is truck&wheels for off road skateboard

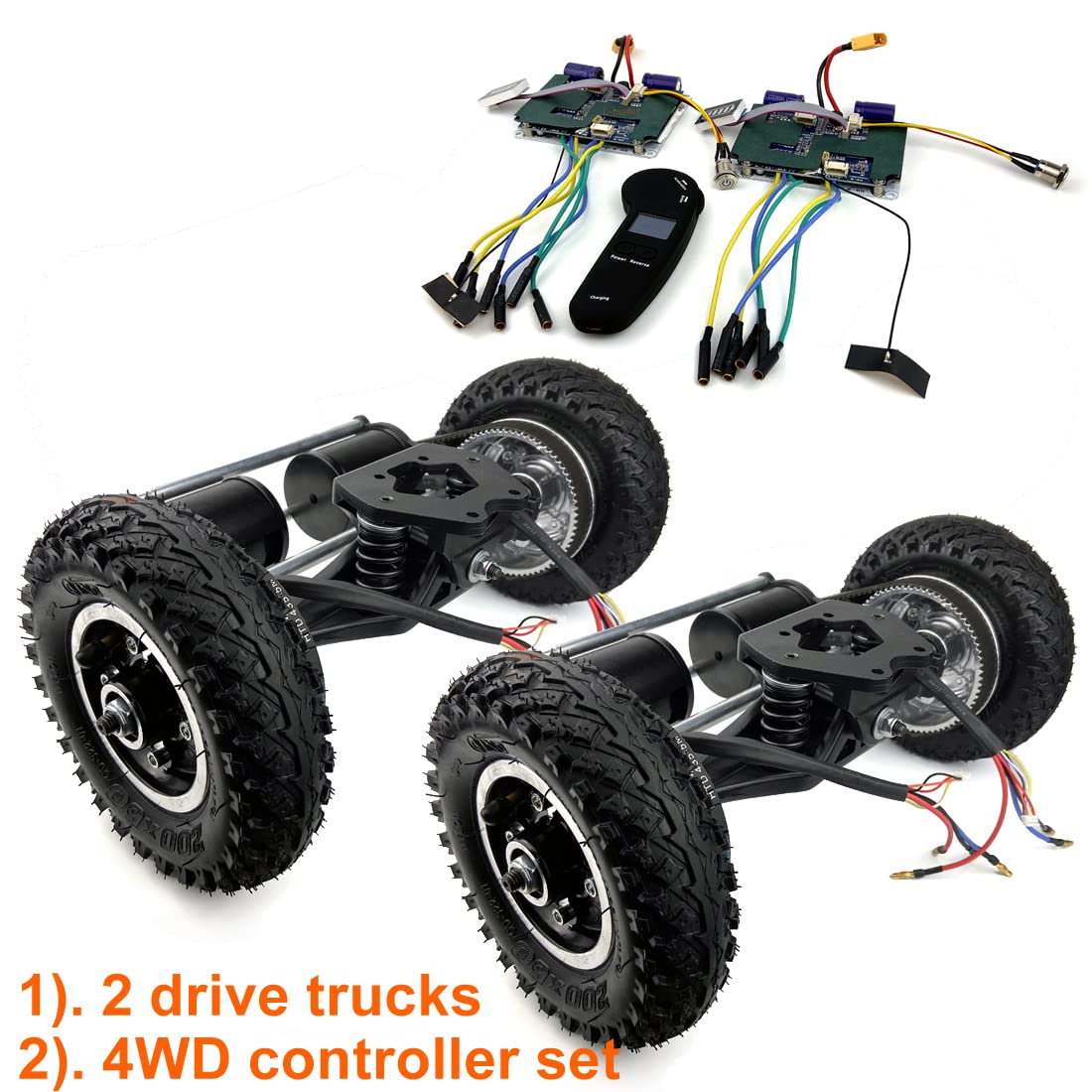

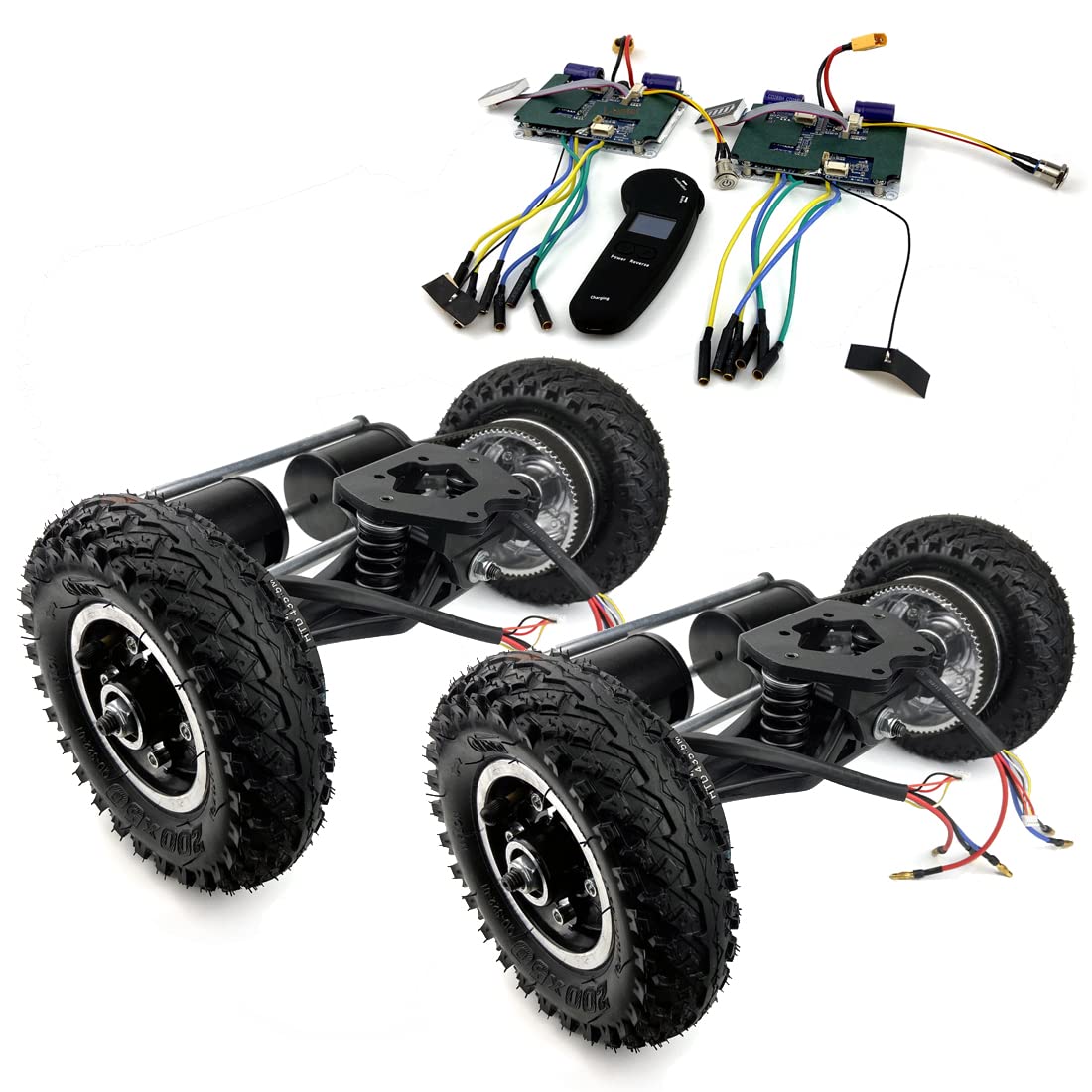

This item includes:
1). 2x drive truck
2). 2x controller board
3). 1x remote
Please note this item does not include a battery, and the battery please use the 10S li-po battery or 5C output 18650 li-ion battery,
the normal e-bike battery does not compatible with this item, please confirm this.

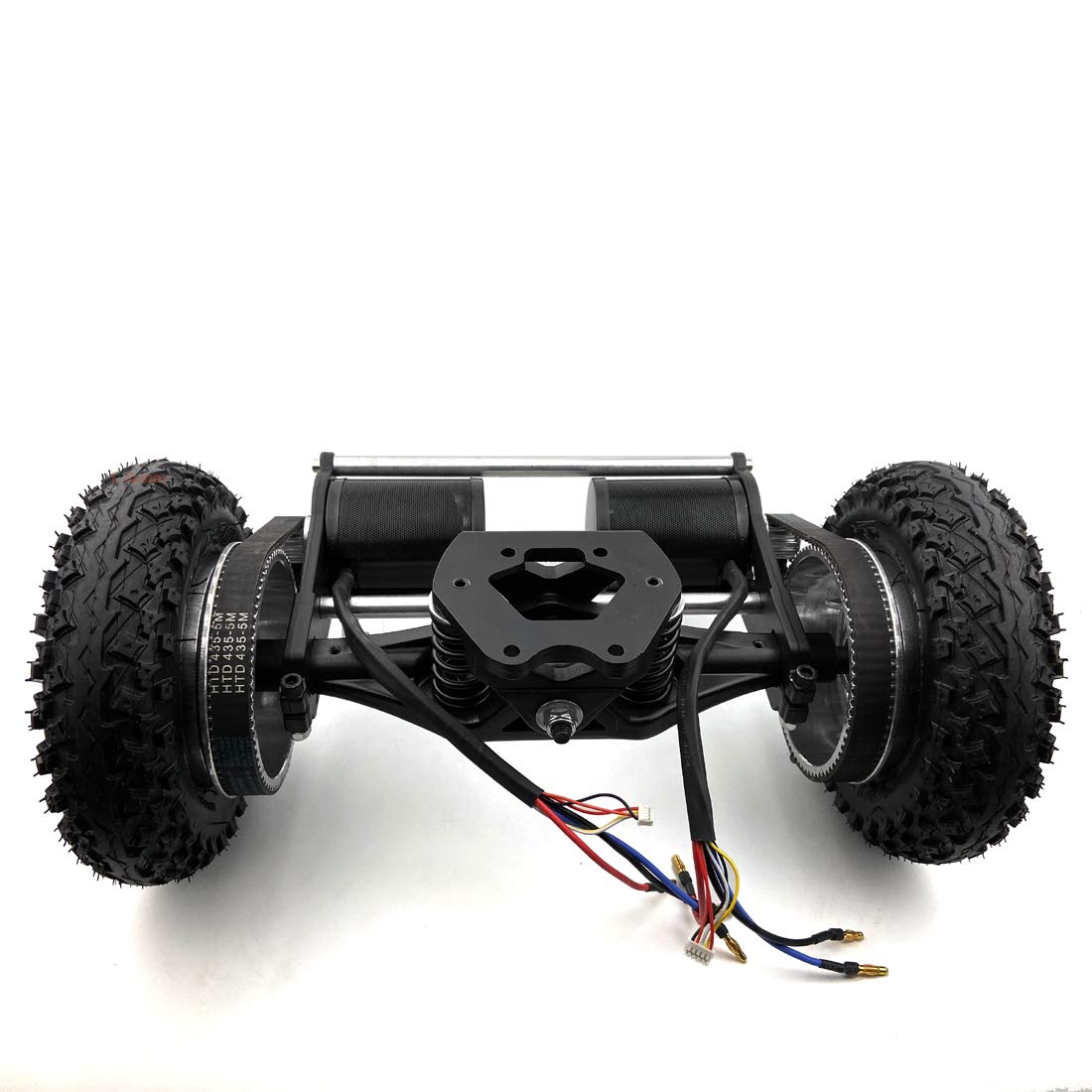

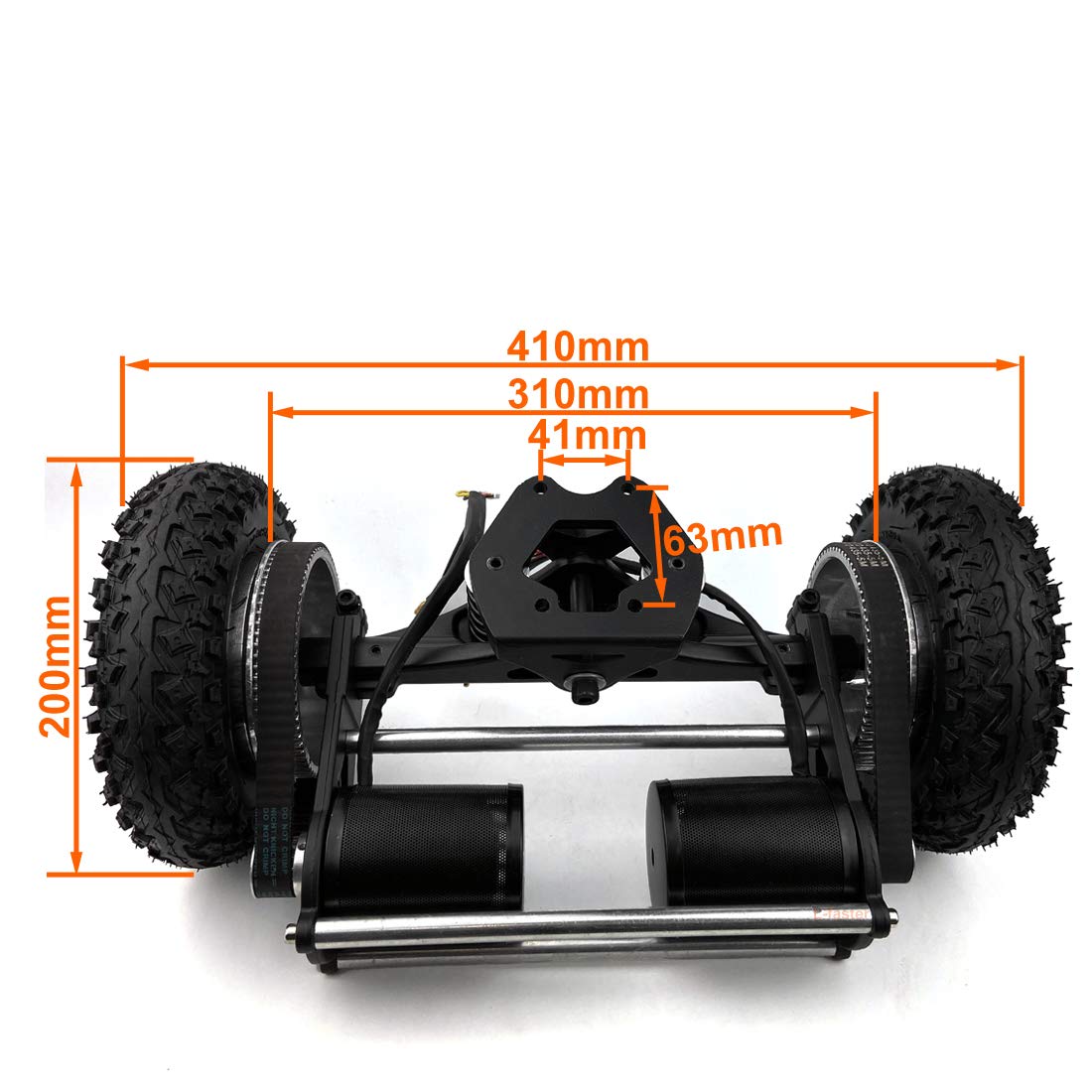

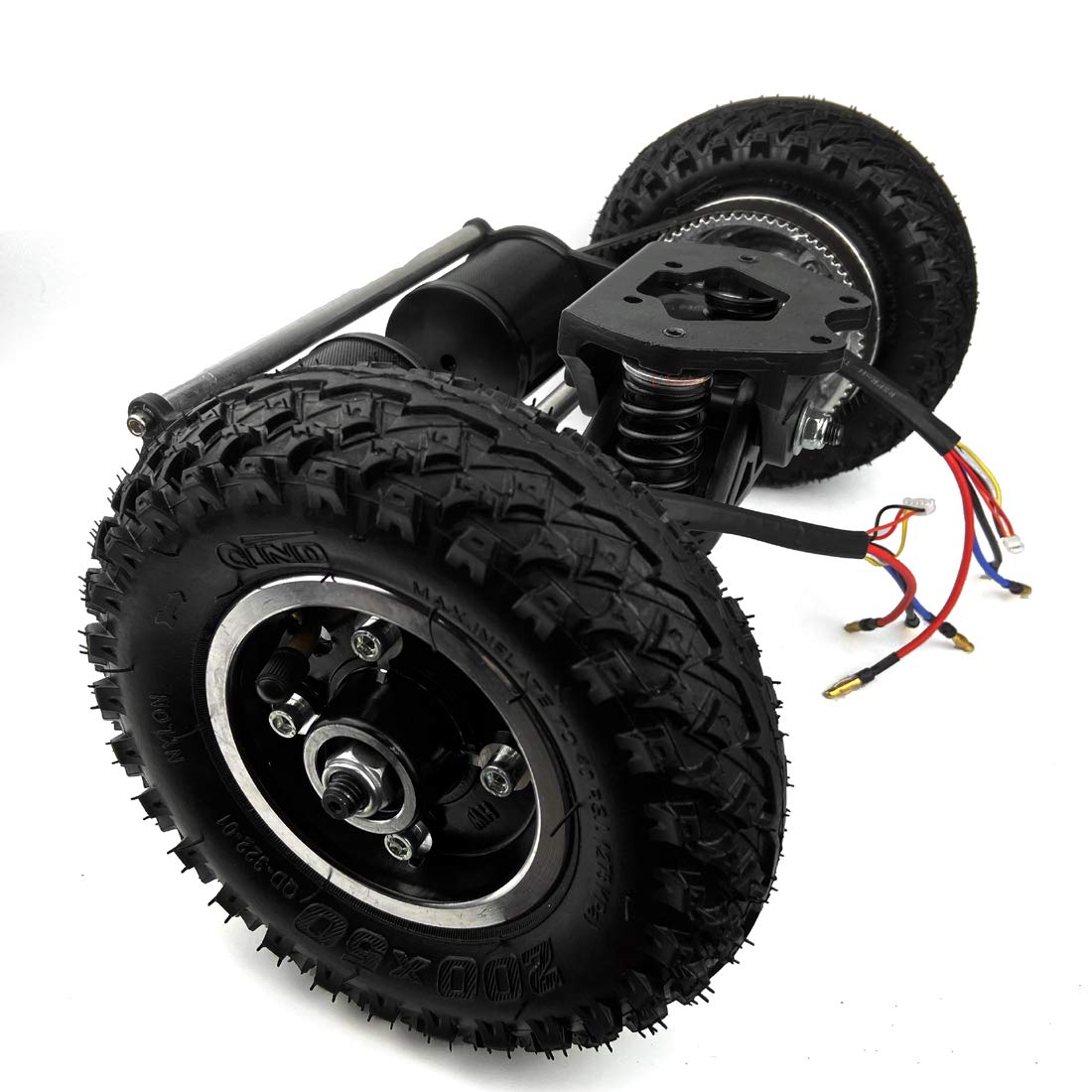

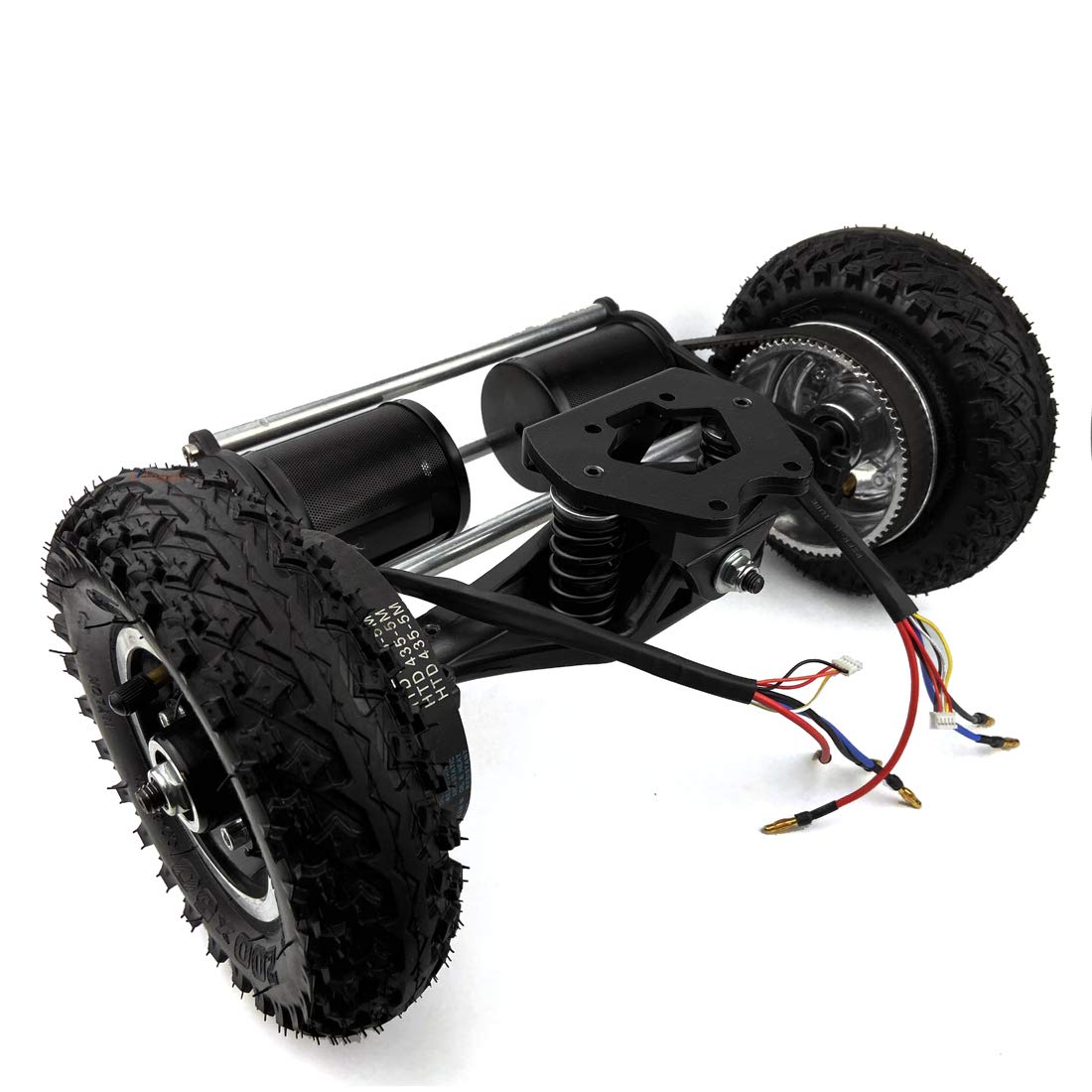

Drive truck (5.0kg) include:

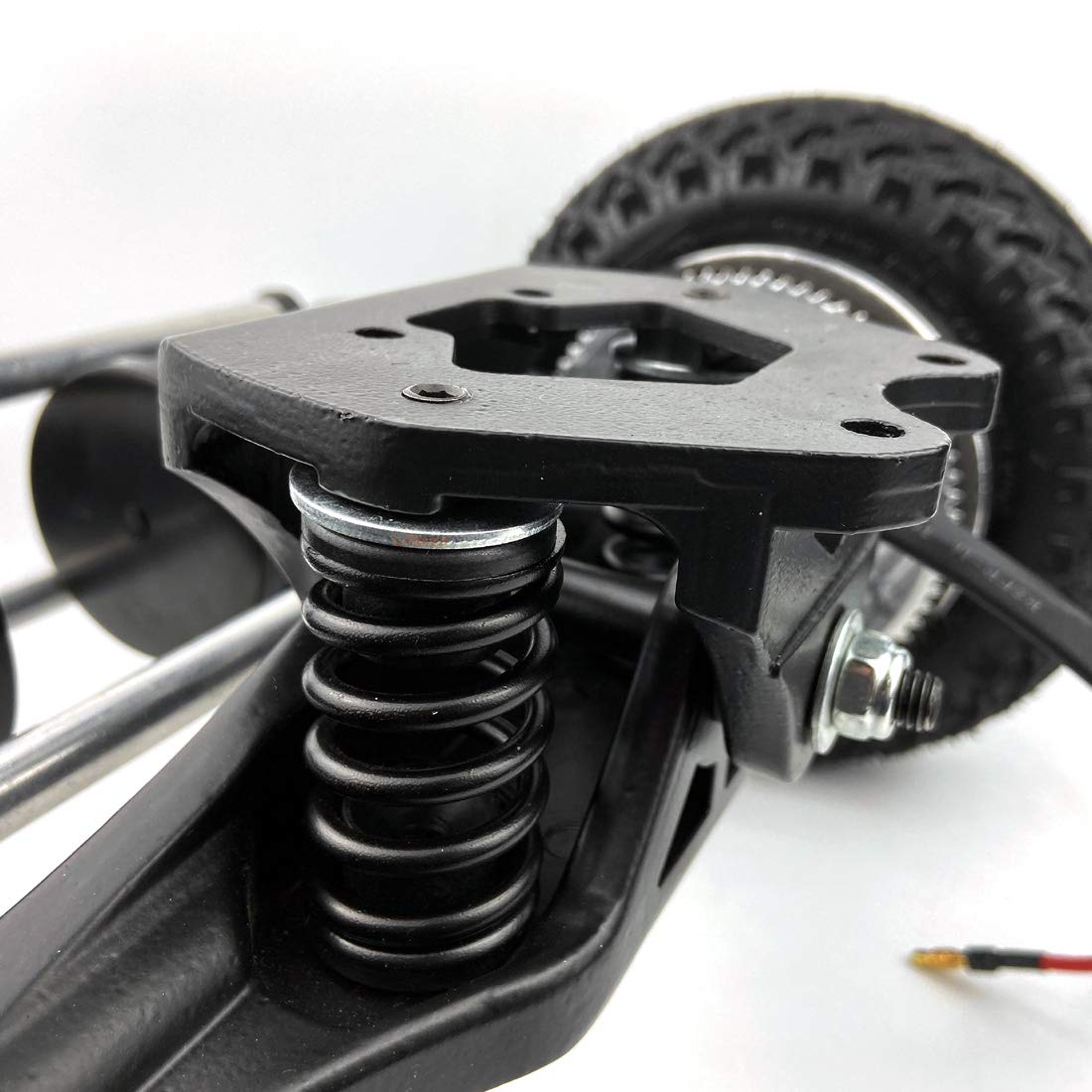

1. 1x Truck with riser pad
2. 2x 8" wheel with pulley
3. 2x 1650W brushless motor with pulley
4. 2x Motor bracket
5. 2x Motor cover

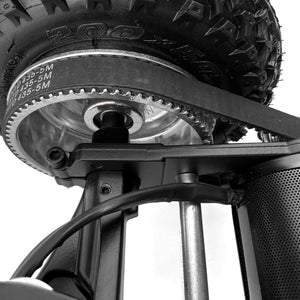

6. 2x Belt
Motor Specification
Model: N63
Voltage: 36 Volt
Output: 2800 Watt
Rotate: 190 KV
Max current: 120A
Max speed: 40 Km/h
Controller boards and remote:
Controller spec:
Voltage: 10S (36V)
Rated current: 30A
Maximum current: 100A
Maximum speed: 8000 RPM
Hall sensor and hall sensorless are all ok.
Mounted on board for reference:
