Brand: QIYHBVR
Features:
- 🚗 The front and rear axles are equipped with all-metal gears, independent golden bridge box cover, branch box, and CVD structure metal transmission half shaft.
- 🚗 The steering gear structure on the bridge has a better climbing effect. With the high-precision CVD structure metal half shaft, it can achieve a large steering angle of 40~42 degrees.
- 🚗 The high-strength powder alloy gear of the reduction box, the reverse transmission drive system, the metal CVD drive shaft, and the high-quality bearing of the seal cover can better reduce the shaft transmission efficiency and the tooth sweeping problem under the condition of super resistance load.

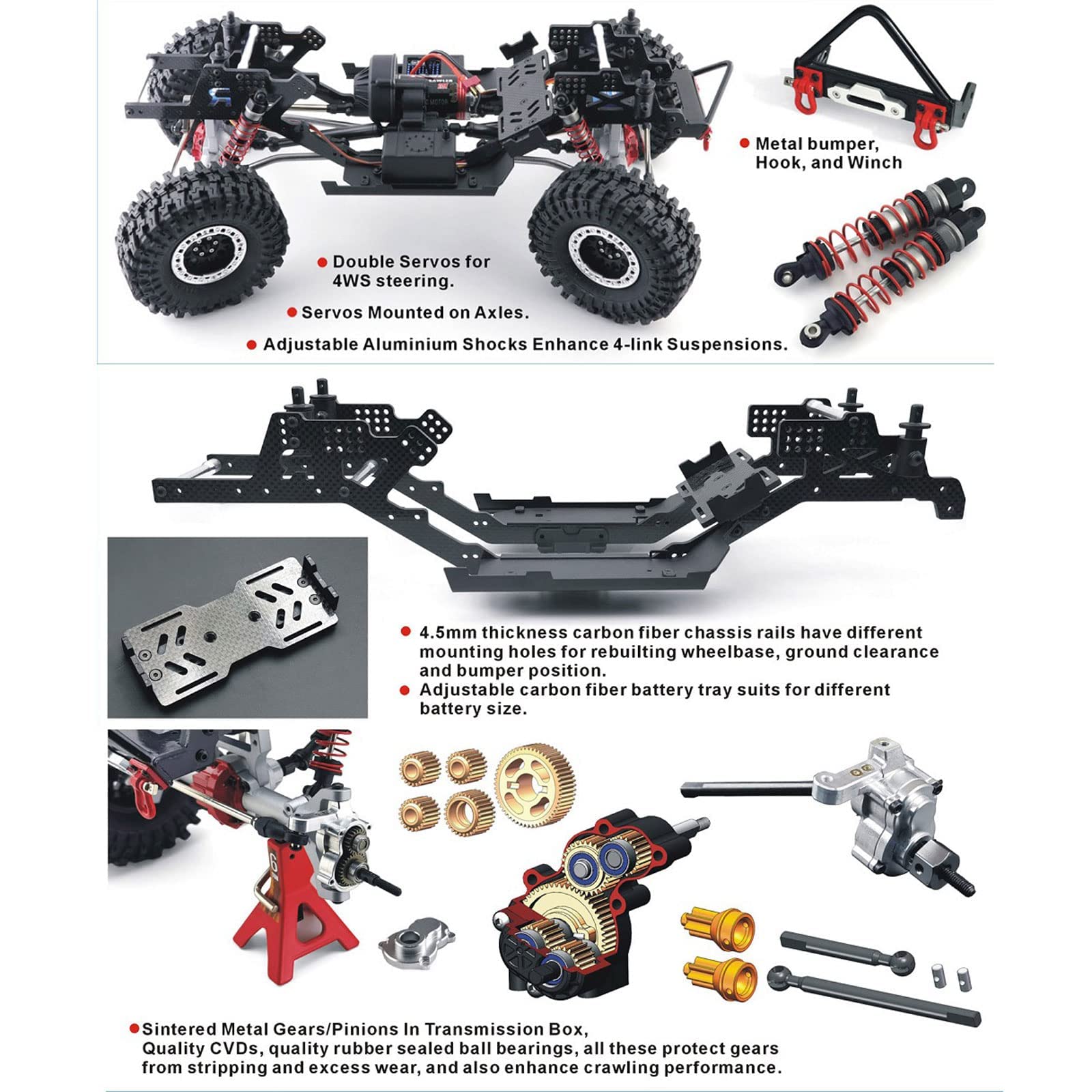

- 🚗 4.5mm thick carbon fiber beam, reserved for modified wheelbase, suspension, car shell, crash plate modification and other hole design.
- 🚗 Front bumper, tow hook, winch seat and left and right side bumpers are all metal parts.
Part Number: Q-7845
Details: Product configuration

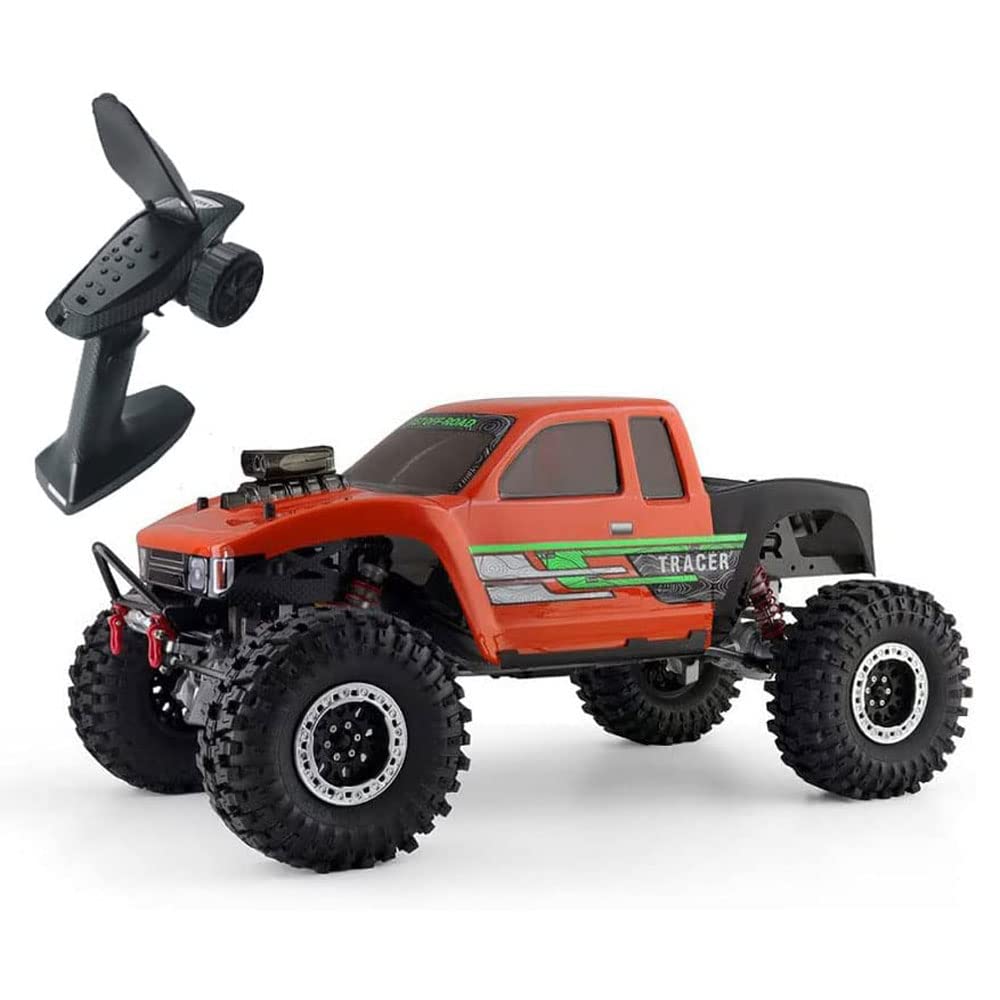

Product: 1/10 electric off-road vehicle
Main product material: plastic PA/hardware/rubber/electronics
Car shell material: PC soft shell
Body Color (Optional): Orange, Off-White

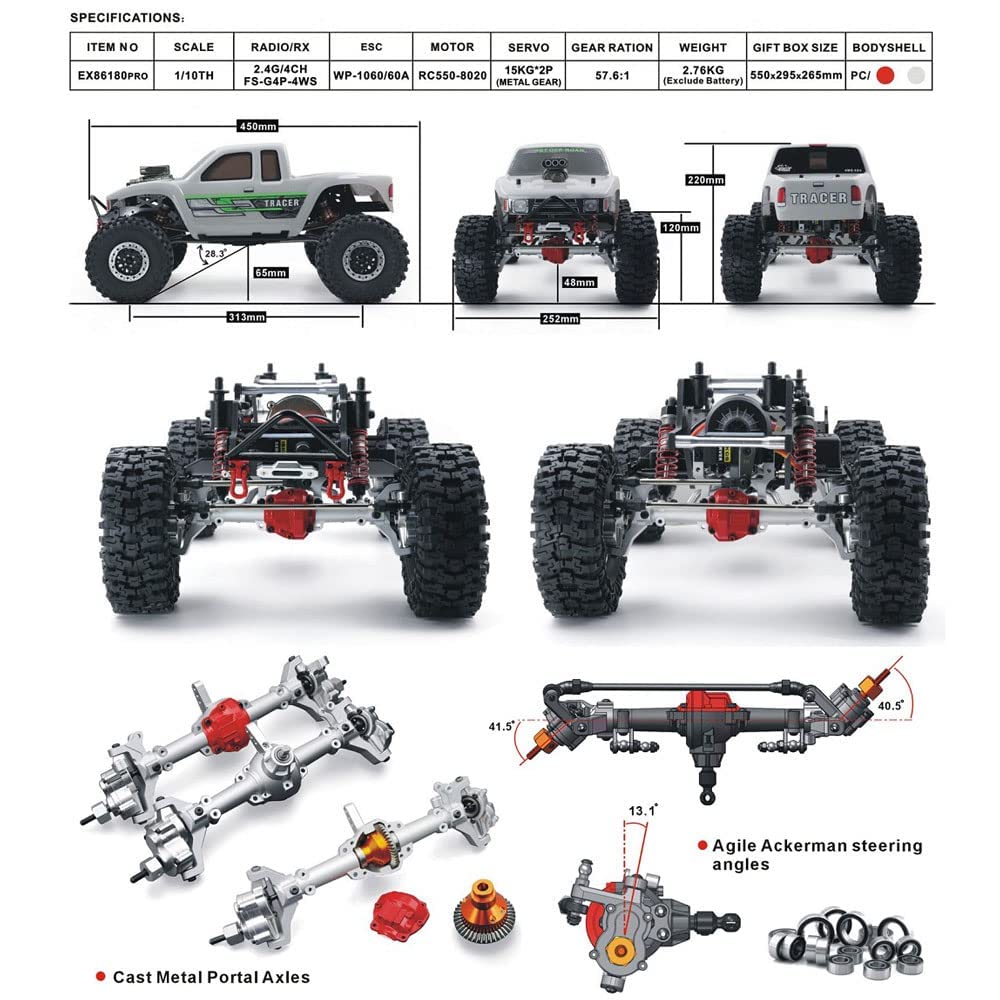

Wheelbase: 313mm
Length: 450mm
Width: 252mm
Chassis height from the ground: 65mm (chassis), 48mm (bridge box)
Longitudinal passing angle: 28.3°
Approach angle: 79.5°
Departure angle: 90°
Packing size: 550*295*265mm
Weight (without battery): 2.76KG
Gear Ratio: 57.6:1
Recommended battery : 2S-3S lithium battery or 7.2V
Motor: RC550-8020
Servo teaching amount: 2P
Steering gear: digital metal teeth 15KG
ESC: wP-1060/60A
Bridge box: all "steel"
Control/Receive: 2.4G/4CH
Package Included:
Remote control car*1, remote control*1
EAN: 7553096379145
